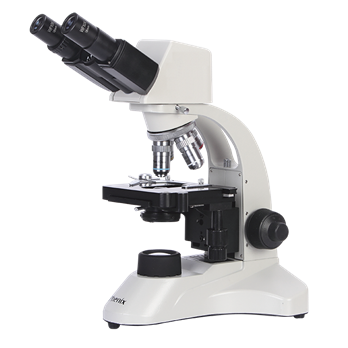

PH-50 Series Digital Microscope Main Technical Parameters
Digital imaging system: imported chip, 2 million to 20 million pixels, signal output: USB2.0/usb3.0
Image software functions: manual / automatic exposure, manual / automatic white balance, photo, video, image editing, measurement, image color adjustment, image overlay, particle counting, etc.
Optical magnification: 40X-1600X
Viewing head: digital compensation free binocular head, 30°inclined, 360° rotatable, interpupillary distance 48-75mm
Eyepiece: Wide field, diopter adjustable, WF10X/20mm, WF16X/15mm
Objective: Achromatic/economic plan achromatic 4X, 10X, 40X (Spring), 100X (Oil ,Spring)
Nosepiece : Quadruple, four holes inward ,steel ball positioning
Working Stage : Double layer mechanical moving stage, can hold two slice clips
Size 115×125mm (optional 140×132mm), moving range 70×50mm
Focusing system: coaxial coarse and fine focusing knob , coarse adjustment 22mm, fine adjustment 0.002mm
Condenser: Abbe condenser, N.A.=1.25, iris diaphragm
Light source: LED, 3W, adjustable brightness
Power : external switching power supply, AC100-240V
-
PH50 series digital microscope, using ergonomics design, Smooth line of machine, beautiful appearance, light structure. Long-term observation is not easy to fatigue, built-in handle for easy pick up.
PH50 series digital microscopes are available for teaching research, clinical experiments and scientific research analysis of biology, pathology and bacteriology in many institutions of higher learning, medical and health care, laboratories and scientific research institutes.
※ Seamless connection between Digital photoelectric imaging and optical system;
※ CCD/CMOS camera is really built-in, accurate internal positioning;
※ Original photoelectric imaging splitting structure eliminates the need for push-pull rods to ensure adequate and uniform illumination at any magnification;
※ There is no need to re-adjust the coarse adjustment to ensure that the observation under the binocular is completely synchronized with the computer display;
※ Excellent image quality, like sharp and no color difference, the image is flat and clear.
-
