PH100-PG series polarizing microscope adopt ergonomic design, with simple polarizing device, convenient to operation, can be used to research transparent illumination. It is widely used in the research and inspection of geology, chemical industry, medical treatment, medicine, and other fields. It can also observe the crystal phase of liquid polymer materials, biopolymers and liquid crystal materials. It is ideal instrument for research and teaching in scientific research institutions and universities.

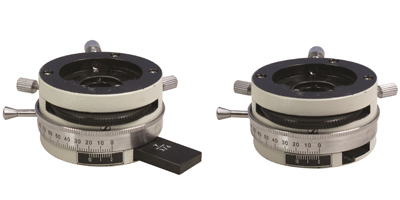

● Condenser
Polarized condenser: NA.0.85, aperture adjustable, up and down 360°rotatable, 0,30,45,90,180,270,315 degree grade

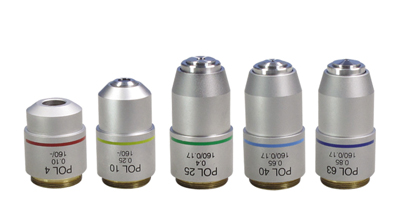

● Objective
The center of the objective can be adjusted
● Analyzer
Built-in analyzer,normal observation and polarized light observation can
be freely switched,90 degree rotatable with scale.
Rotary bertrand lens ,height and center adjustable

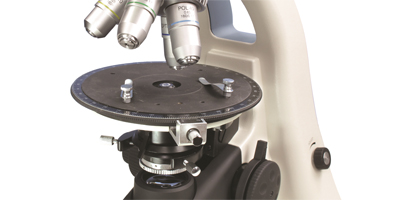

● Large stage
Rotatable stage, 360degree scale, grid: 6’
centre adjustable with lock unit,Dia of circle stage: 160mm

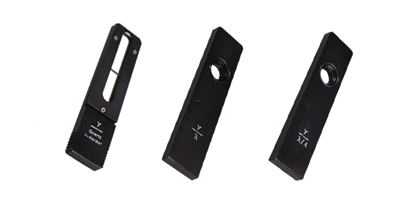

● Compensator
3pcs, λCompensator, λ/4 Compensator, Quartz Wedge Compensator
-
PH100-PG Polarizing Microscope Main parameters
Model
PH100-PG-A
PH100-PG-B
Observing style
Transparent (transparent illumination)
Magnification
40X-400X
40X-630X
Observing tube
Trinocular, 45°inclined, interpupillary distance 55-75mm
Eyepiece
WF10X/18mm
Unstressed plan objectives
Without coverslip, PL4X/-
Without coverslip, PL10X/-
Without coverslip, PL25X/0.40
Without coverslip, PL40X/0.65(Spring)
Without coverslip,
PL63X/0.85(Spring)
Middle tube
Built-in analyzer, normal observation and polarized light
observation can be freely switched,
90 degree rotatable with scale
Rotary bertrand lens, height and center adjustable
λCompensator
λ/4 Compensator
Quartz Wedge Compensator
Focusing system
Coaxial coarse&fine focusing knob,
coarse focusing range 26mm,
fine focusing graduation 0.002mm
Nosepiece
4 Holes
5 Holes
Stage
Rotatable stage, 360degree scale,
grid: 6′ centre adjustable with lock unit,
dia of circle: 160mm
Tramsmitted illumination
Polarizer: 360°rotatable,
0,30,45,90,180,270,315 degree grade
Illuminator: LED
Illumination: LED 3W, brightness adjustable
Polarized condenser: NA.0.85, aperture adjustable,
up and down
Package
Foam+ Carton
-
