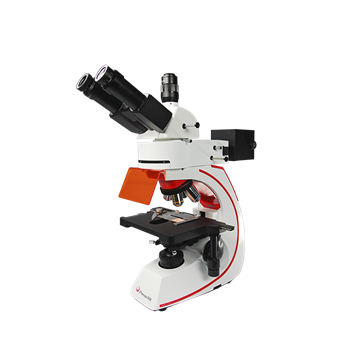

BMC533-FLED-UVBG fluorescence microscope
- Description
- Features
- Download
-
BMC533-FLED-UVBG Main Technical Parameters
Optical system: Infinity Optical System
Magnification: 40X-1600X
Viewing head: Infinity compensation trinocular head, 30°inclined, 360° rotatable, interpupillary distance 48-75mm
Eyepiece: high eyepoint, large field of view, no distortion, diopter adjustable , WF10X/20mm, WF16X/16mm
Objective: ICCF Infinity Plan High Contrast Achromatic, HC PLAN 4X/0.10, 10X/0.25, 40X/0.65 (Spring), 100X/1.25 (Spring,Oil)
Nosepiece: Quadruble four holes, inward , steel ball positioning
Stage: Double Layer Mechanical Moving Stage, can hold two slice, size 188×145mm, Moving range 76×54mm
Focusing system: Coaxial Coarse and Fine focusing knob, coarse adjustment 20mm, fine adjustment 0.001mm, with hand wheel elastic adjustment, Random limit locking mechanism

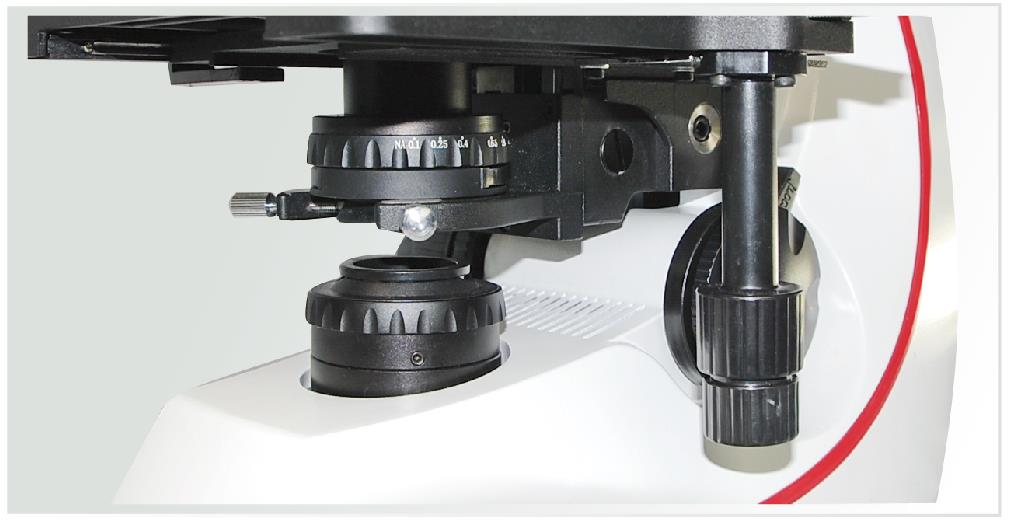

Condenser: Abbe condenser, N.A.=1.25, iris diaphragm, concentrator center adjustable
Transmitted light source: LED 3W, adjustable brightness
Base Power : external switch power supply, DC 6.5V
Epi-fluorescent lighting system:
Light source: LED 3W, adjustable brightness
Fluorescent components:
Blue (B) excitation wavelength: 430-485 nm, color separation wavelength: 500 nm, emission wavelength: 515 nm
Green (G) excitation wavelength: 460-550nm, color separation wavelength: 580nm, emission wavelength: 590nm
Ultraviolet (UV) excitation wavelength: 350-390nm, color separation wavelength: 415nm, emission wavelength: 425nm
Violet (V) excitation wavelength: 395-415nm, color separation wavelength: 430nm, emission wavelength: 455nm
Power: External regulated power adapter, DC 6.5V/2A
Eye protection screen: UV protection baffle
-
BMC533-FLED-UVBG Fluorescence Light Microscope is a versatile optical instrument that use infinity plan achromatic fluorescence objective and large-field eyepiece. The optical system is clearly imaged and has a wide field of view. LED lighting, adjustable brightness, low power consumption, long service life, safe and comfortable operation. It is an ideal instrument for life science research, disease prevention and immunoassay, and can be used by scientific research, universities, medical and disease control and epidemic prevention departments.
Compensation Trinocular Head, can be connected to camera.
Large field eyepiece WF10X/Φ22
Adopt cold light source LED illumination, no heat, provide blue, green, purple, ultraviolet
Four-band fluorescence observation

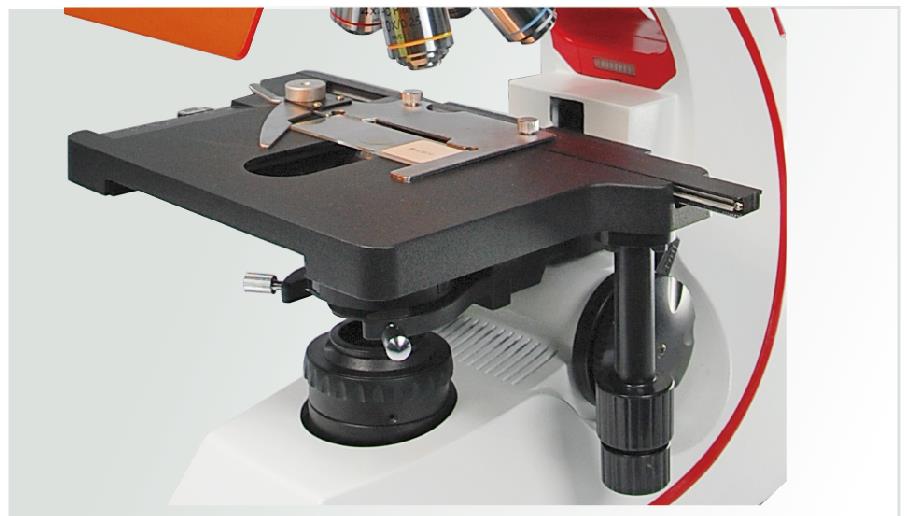

Double-layer mechanical mobile platform, stable and reliable
Area: 188*1458mm, moving range: 76*54mm
Kohler illumination, 3W LED cold light source, precision dimming, no flicker
-
